rimedio
solution

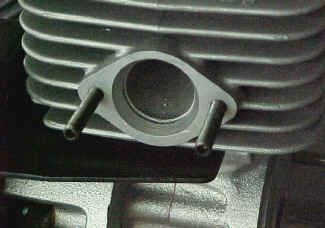

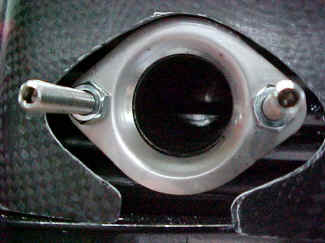

new exhausts combined with new flange M 8 G ( flangia scarico inox exhaust flange) and M 8 G 1 (guarnizione scarico exhaust gasket)

can cause the exhaust studs to come out of the cylinder and some to break off.

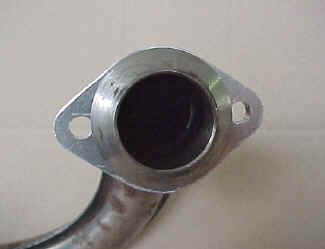

enlarge the 2 holes of exaust flange to 7 mm or more,

than use Loctite 1372 sealer instead of M8 G1 gasket

the studs must be insert 12/15 mm inside the cylinder

with the exausts 02 serie also the bolts must be used ( 6 MA - thin) to fix the inox flange.

problema	rimedio

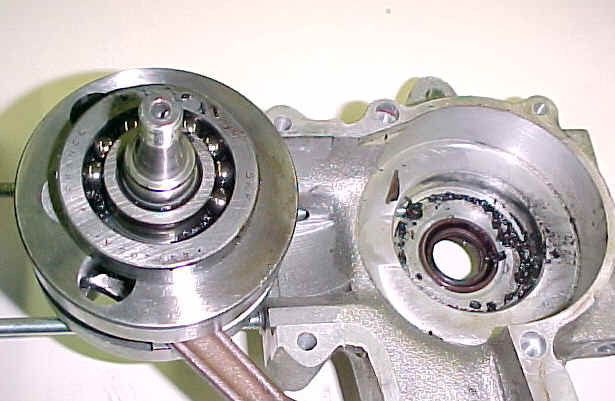

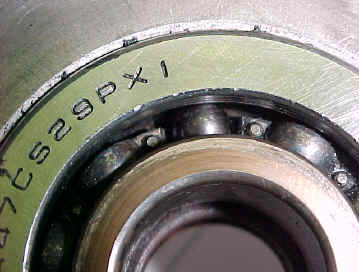

l'albero non gira libero o i cuscinetti fischiano	sostituire
(steel cage version)
> no spheres !!

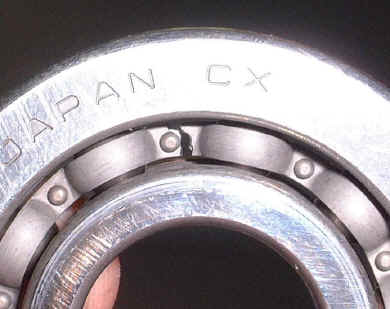

big noise on cranksahft	something depends from a bearing
(plastic cage version)

problema	rimedio

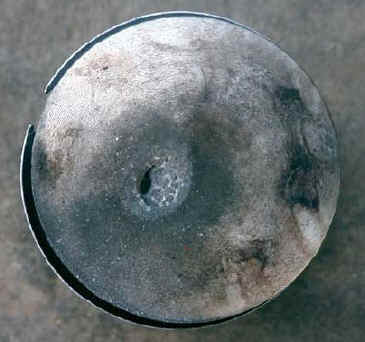

preaccensione o detonazione pinging and/or detonation	controllare anticipo, compressione, carburazione, grado candela, marmitta che sfiata. overhating can cause A poor carburation give problem of over heating, included pre burning and at last hole on piston. But the same can come from a bad angle of lightning and too compression and poor octan number, try to change the cylinder gasket with a thiker one, good squish is 0,8 mm - or 0,95 mm with a poor octan number. another reason can be an air leaking on exaust.

problema	rimedio

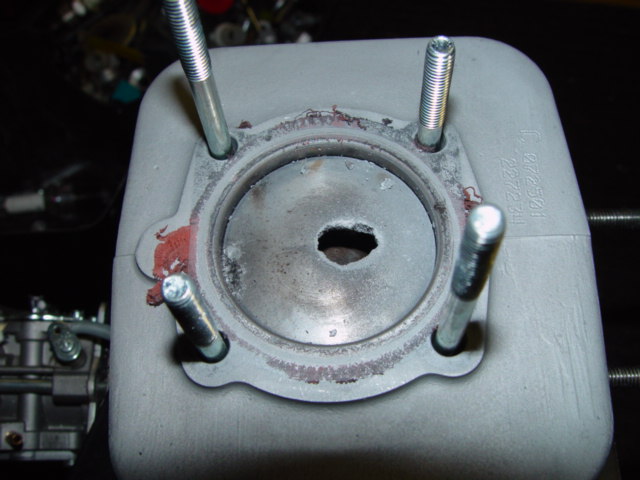

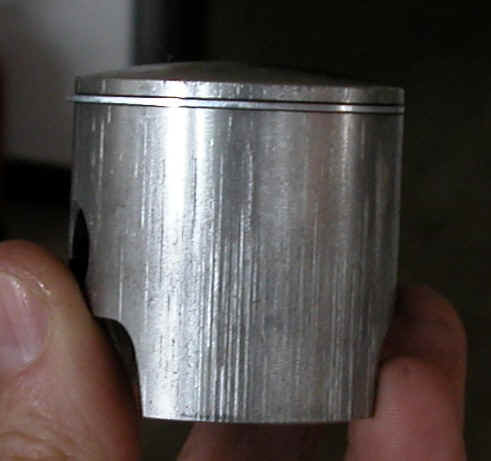

big scraps on piston, really hard to start, loss of power	please call us

problema	rimedio

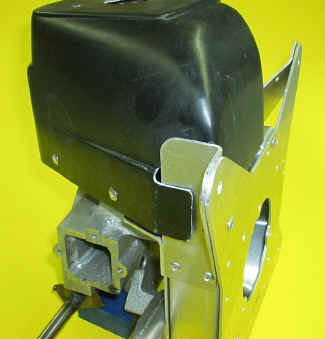

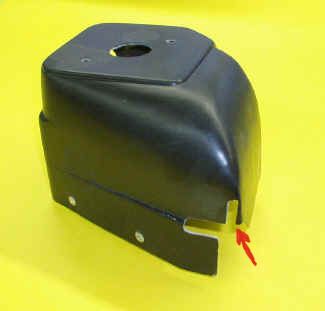

sostituzione della vecchia cuffia di raffreddamento in polietilene con la nuova in vetroresina	si può adattare nel vecchio convogliatore da 30 mm how to adapt the new cooling cap (35 mm) on old 30 mm cooling box

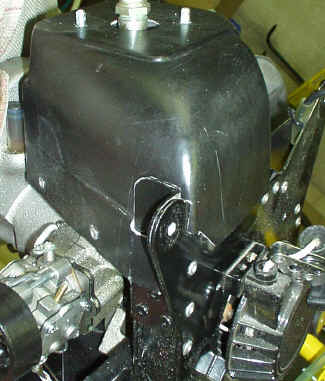

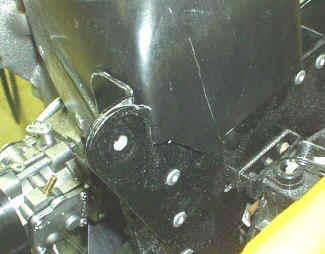

30 mm cooling cap on 30 mm cooling box or 35 mm cooling cap on 35 mm cooling box	35 mm cooling cap, cut here

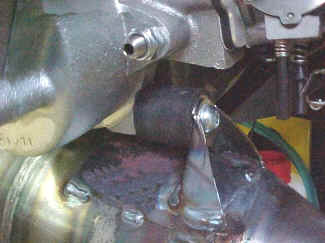

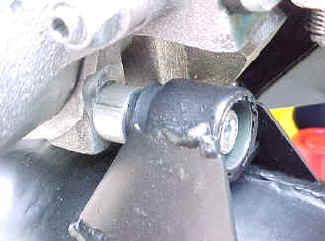

If you have problems, loose, broke, this rubber mount	please call us, we send a new one, you will need to weld it.
